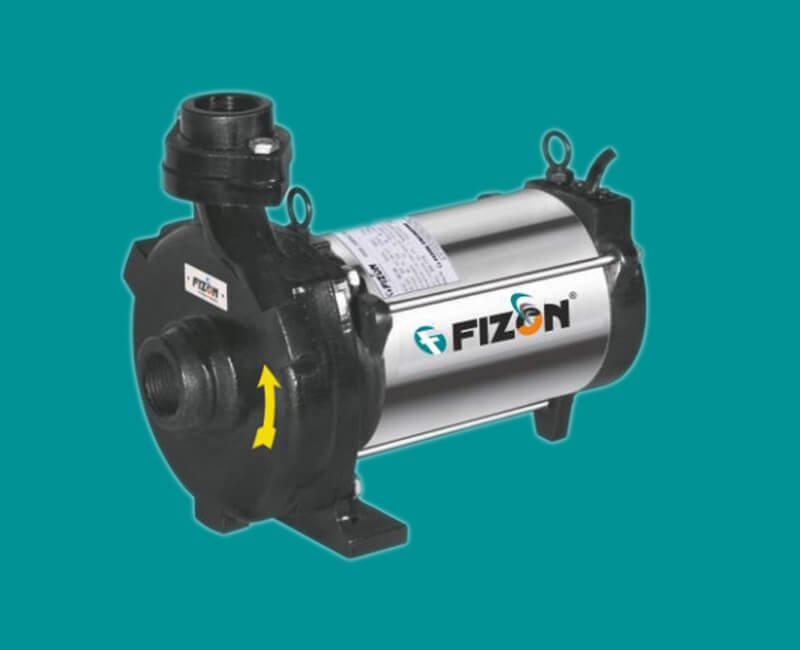

V7-Horizontal Openwell Pump

CASTING PARTS : CAST IRON (GRADE FG 200)
WINDING : COPPER WINDING (E.C. GRADE)
BUSH : BRONZE BUSH (GRADE LTB 4)
THRUST BEARING SET : CARBON + STAINLESS STEEL

Motor Body S.S. with Copper Rotor

H.P.	Suc. x Del. Size in MM		Total Head in Meters
H.P.	Suc. x Del. Size in MM		12	14	16	18	20	22	24	26	28	30	32
3	50x50	Discharge in LPM	560	540	500	480	470	440	400	350	280	200	150	-	-
3	65 x 50		690	630	600	540	500	440	360	-	-	-	-	-	-
5	65 x 50		760	720	660	600	550	500	450	400	300	200	80	-	-

Motor Body S.S. with Aluminium Rotor

H.P.	Suc. x Del. Size in MM		Total Head in Meters
H.P.	Suc. x Del. Size in MM		12	14	16	18	20	22	24	26	28	30	32
3	50x50	Discharge in LPM	560	540	500	480	470	440	400	350	280	200	150	-	-
3	65 x 50		690	630	600	540	500	440	360	-	-	-	-	-	-
5	65 x 50		760	720	660	600	550	500	450	400	300	200	80	-	-
