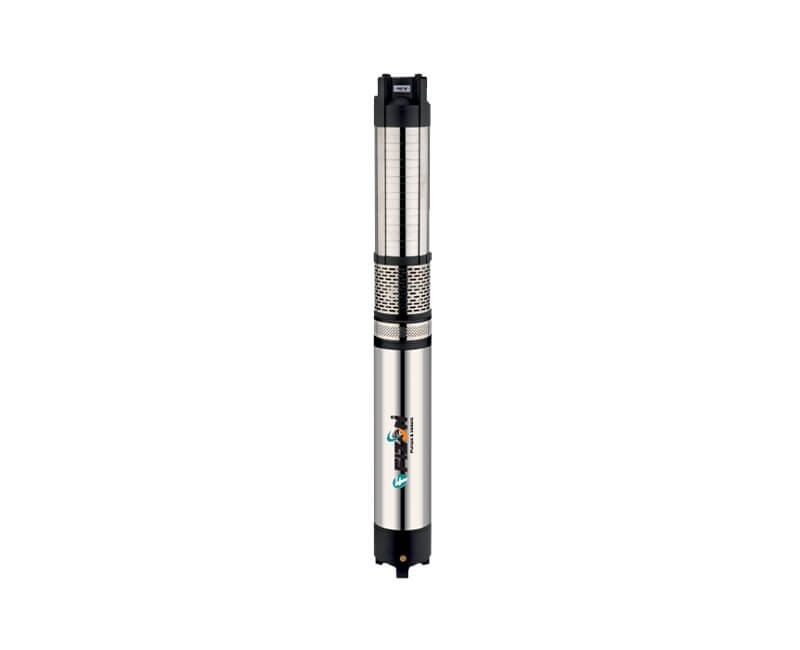

V6 S.S. Borewell Pump Set

  • SHAFT MATERIAL : STAINLESS STEEL (GRADE 410)
  • CASTING PARTS : CAST IRON (GRADE FG 200)
  • WINDING : COPPER WINDING (E.C. GRADE)
  • BUSH : BRONZE BUSH (GRADE LTB 4)
  • THRUST BEARING SET : CARBON + STAINLESS STEEL
  • IMPELLER :STAINLESS STEEL BOWL (GRADE 304) / STAINLESS STEEL (GRADE 410)

Loading per stage = 0.5 H.P. Maximum Head Per Stage - 50' (15 Meter)

H.P. STAGE NRV 50 mm (2") DISCHARGE IN L.P.M
40 80 100 110 130 150 180
3 6 Head in Meters 84 78 72 66 60 48 30
4 8 112 104 96 88 80 64 40
5 10 140 130 120 110 100 80 50
6 12 168 156 144 132 120 96 60
7.5 14 196 182 168 154 140 112 70
7.5 15 210 195 180 165 150 120 75
10 20 280 260 240 220 200 160 100
12.5 25 350 325 300 275 250 200 125
15 30 420 390 360 330 300 240 150

Loading per stage = 0.60 H.P. Maximum Head Per Stage - 50' (15 Meter)

H.P. STAGE NRV 50 mm (2") DISCHARGE IN L.P.M
50 95 120 140 160 180 215
3 5 Head in Meters 75 70 65 60 52 40 30
4 7 105 98 92 84 72 56 40
5 8 120 112 105 96 82 65 45
6 10 150 140 130 120 102 82 57
7.5 12 180 166 157 144 123 98 68
10 16 240 224 208 192 164 128 90
12.5 20 300 280 262 240 205 160 114
15 24 360 335 312 288 246 194 135

Loading per stage = 1.0 H.P. Maximum Head Per Stage - 36' (11.00 Meter)

H.P. STAGE NRV 32 mm (1.25") DISCHARGE IN L.P.M
60 110 150 180 210 255 280
3 4 Head in Meters 60 56 52 48 39 30 22
4 5 75 70 65 60 48 38 26
5 6 90 84 78 72 58 45 32
6 8 120 112 104 96 78 60 42
7.5 10 150 140 130 120 96 75 54
10 12 180 166 156 144 116 90 64
12.5 15 225 210 195 180 145 112 80
15 18 270 250 234 216 175 135 96

Loading per stage = 2.0 H.P. Maximum Head Per Stage - 50' (15.0 Meter)

H.P. STAGE NRV 75 mm (3") DISCHARGE IN L.P.M
70 165 190 240 300 340 390
3 3 Head in Meters 45 42 39 36 30 24 15
4 4 60 56 52 48 40 32 20
5 5 75 70 65 60 50 40 24
6 6 90 84 78 72 60 48 28
7.5 8 120 112 104 96 80 62 40
10 10 150 140 130 120 100 80 45
12.5 12 180 168 156 144 120 96 58
15 15 225 210 195 180 150 120 72

Loading per stage = 1.25 H.P. Maximum Head Per Stage - 50' (15 Meter)

H.P. STAGE NRV 75 mm (3") DISCHARGE IN L.P.M
90 210 260 320 390 440 550
4 3 Head in Meters 45 42 40 36 30 24 16
5 4 60 56 53 48 40 32 20
6 5 75 70 66 60 50 40 25
7.5 6 90 84 80 72 60 48 30
10 8 120 112 106 96 80 64 40
12.5 10 150 139 133 120 100 80 50
15 12 180 168 160 144 120 96 60

Loading per stage = 1.5 H.P. Maximum Head Per Stage - 50' (15 Meter)

H.P. STAGE NRV 65 mm (2.5") DISCHARGE IN L.P.M
120 290 340 380 490 540 620
3 2 Head in Meters 30 28 26 24 18 15 10
5 3 45 42 40 36 26 22 15
6 4 60 56 52 48 36 29 20
7.5 5 75 70 65 60 44 36 25
10 7 105 98 90 84 62 50 35
12.5 8 120 112 104 96 70 58 40
15 10 150 140 130 120 88 72 50

Loading per stage = 2.00 H.P. Maximum Head Per Stage - 50' (15 Meter)

H.P. STAGE NRV 65 mm (2.5") DISCHARGE IN L.P.M
240 360 410 490 550 530 720
4 2 Head in Meters 30 28 26 24 20 15 8
6 3 45 42 40 36 30 23 11
7.5 4 60 56 53 48 40 30 15
10 5 75 70 66 60 50 37 18
12.5 6 90 84 80 72 60 45 22
15 8 105 98 90 84 70 52 24
