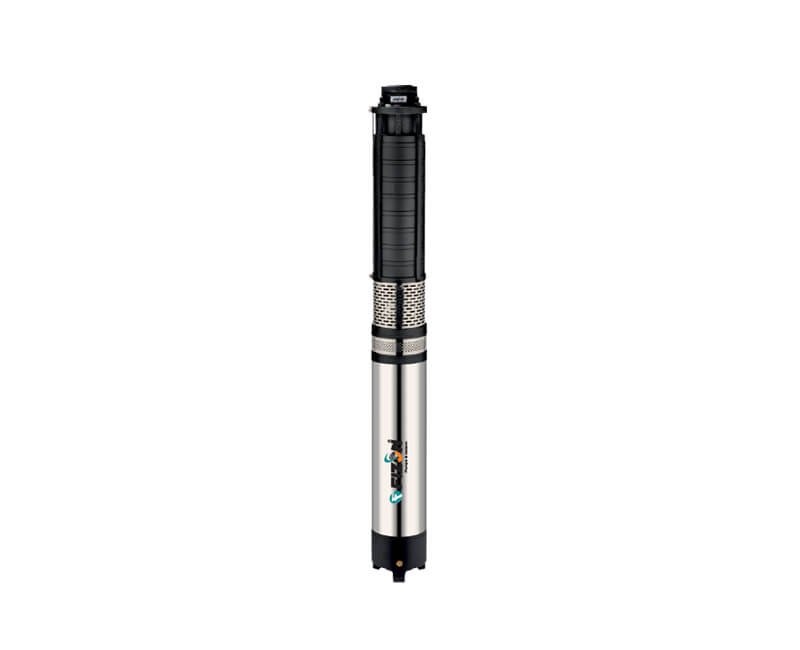

V6 Radial Flow Borewell Pump Set

  • SHAFT MATERIAL : STAINLESS STEEL (GRADE 410)
  • CASTING PARTS : CAST IRON (GRADE FG 200)
  • WINDING : COPPER WINDING (E.C. GRADE)
  • BUSH : BRONZE BUSH (GRADE LTB 4)
  • THRUST BEARING SET : CARBON + STAINLESS STEEL
  • IMPELLER : CAST IRON (GRADE FG 200) / STAINLESS STEEL (GRADE 410)

Loading per stage = 0.4 H.P. Maximum Head Per Stage - 36' (11 Meter)

H.P. STAGE NRV 50 mm (2") DISCHARGE IN L.P.M
45 60 80 120 150 170 200
3 8 Head in Meters 72 68 64 56 48 40 32
4 10 90 85 80 70 60 50 40
5 12 108 102 96 84 72 60 48
5 14 126 119 112 98 84 70 56
6 15 135 127 120 105 90 75 60
7.5 18 162 153 144 126 108 90 72
7.5 20 180 170 160 140 120 100 80
10 25 225 212 200 175 150 125 100
12.5 30 270 255 240 210 180 150 120

Loading per stage = 0.5 H.P. Maximum Head Per Stage - 36' (11.00 Meter)

H.P. STAGE NRV 32 mm (1.25") DISCHARGE IN L.P.M
55 110 130 150 170 200 240
3 6 Head in Meters 54 48 45 42 36 30 18
4 8 72 64 60 56 48 40 24
5 10 90 80 75 70 60 50 30
6 12 108 96 90 84 72 60 36
7.5 15 135 120 113 105 90 75 45
10 20 180 160 150 140 120 100 60
12.5 25 225 200 188 175 150 125 75
15 30 270 240 226 210 180 150 90

Loading per stage = 0.6 H.P. Maximum Head Per Stage - 36' (11 Meter)

H.P. STAGE NRV 50 mm (2") DISCHARGE IN L.P.M
90 125 140 170 200 230 280
3 5 Head in Meters 48 45 43 40 35 30 20
4 7 67 63 60 56 49 42 28
5 8 76 72 69 64 56 48 32
6 10 95 90 86 80 70 60 40
7.5 12 114 108 138 96 84 72 48
10 16 152 144 172 128 112 96 64
12.5 20 190 180 215 160 140 120 80
15 25 238 225 258 200 175 150 100

Loading per stage = 0.7 H.P. Maximum Head Per Stage - 36' (11 Meter)

H.P. STAGE NRV 50 mm (2") DISCHARGE IN L.P.M
130 165 200 230 270 300 350
3 4 Head in Meters 40 38 35 32 28 24 16
4 6 60 57 52 48 42 36 24
5 7 70 67 61 56 49 42 28
6 8 80 76 70 64 56 48 32
7.5 10 100 95 87 80 70 60 40
10 14 140 133 122 112 98 84 56
12.5 18 180 171 257 144 126 108 72
15 20 200 190 174 160 140 120 80

Loading per stage = 0.8 H.P. Maximum Head Per Stage - 36' (11.0 Meter)

H.P. STAGE NRV 50 mm (2") DISCHARGE IN L.P.M
160 200 220 260 300 330 380
4 5 Head in Meters 52 48 45 40 35 30 20
5 6 60 57 54 48 42 36 24
6 7 70 67 63 56 49 42 28
7.5 9 90 86 81 72 63 54 36
10 12 120 114 108 96 84 72 48
12.5 15 150 143 135 120 105 90 60
15 18 180 171 160 144 126 108 72

Loading per stage = 0.8 H.P. Maximum Head Per Stage - 36' (11.0 Meter)

H.P. STAGE NRV 50 mm (2") DISCHARGE IN L.P.M
160 200 220 260 300 330 380
4 5 Head in Meters 52 48 45 40 35 30 20
5 6 60 57 54 48 42 36 24
6 7 70 67 63 56 49 42 28
7.5 9 90 86 81 72 63 54 36
10 12 120 114 108 96 84 72 48
12.5 15 150 143 135 120 105 90 60
15 18 180 171 160 144 126 108 72

Loading per stage = 1.0 H.P. Maximum Head Per Stage - 36' (11.0 Meter)

H.P. STAGE NRV 50 mm (2") DISCHARGE IN L.P.M
140 180 240 280 320 350 400
3 3 Head in Meters 32 30 27 24 21 18 12
4 4 42 40 36 32 28 24 16
5 5 53 50 45 40 35 30 20
6 6 63 60 54 48 42 36 24
7.5 7 74 70 63 56 49 42 28
7.5 8 85 80 72 64 56 48 32
10 10 105 100 90 80 70 60 40
12.5 12 126 120 108 96 84 72 48
15 15 158 150 135 120 105 90 60
