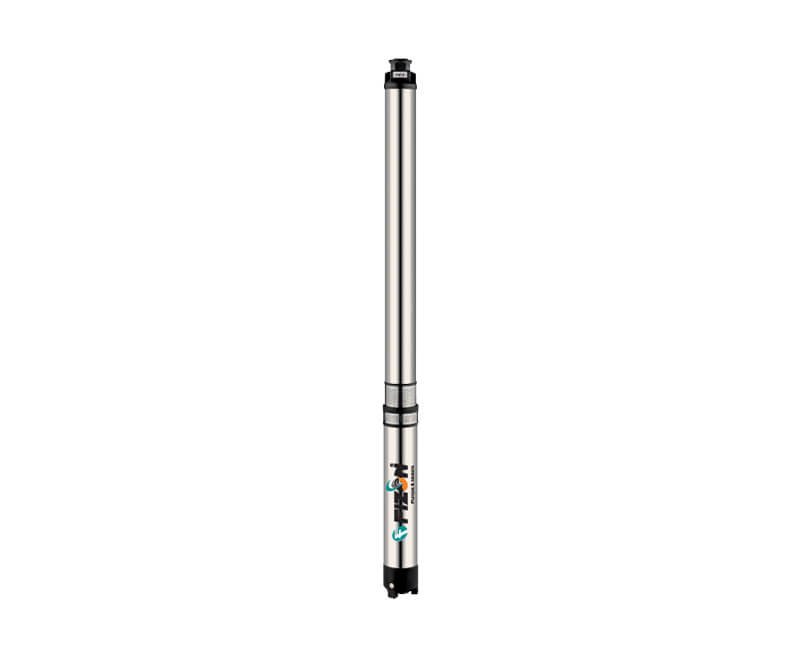

V3 Borewell Pump Set

  • SHAFT MATERIAL : STAINLESS STEEL (GRADE 410)
  • CASTING PARTS : CAST IRON (GRADE FG 200)
  • WINDING : COPPER WINDING (E.C. GRADE)
  • BUSH : BRONZE BUSH (GRADE LTB 4)
  • THRUST BEARING SET : CARBON + STAINLESS STEEL
  • IMPELLER : NORYL (GLASS FILLED) BOWL SET

Loading per stage = 0.042 H.P. Maximum Head Per Stage - 15' (4.5 Meter)

H.P. STAGE NRV 32 mm (1.25") DISCHARGE IN L.P.M
10 17 22 27 35 40 50
0.5 12 Head in Meters 48 42 40 36 30 24 12
0.75 18 72 63 59 54 45 36 18
1 23 92 80 76 69 58 46 23
1.5 28 112 98 92 84 70 56 28

Loading per stage = 0.055 H.P. Maximum Head Per Stage - 15' (4.5 Meter)

H.P. STAGE NRV 32 mm (1.25") DISCHARGE IN L.P.M
10 23 30 35 45 50 60
0.5 9 Head in Meters 36 32 30 27 23 18 9
0.75 14 56 49 46 42 35 28 14
1 18 72 63 59 54 45 36 18
1.5 23 92 81 76 69 58 46 23

Loading per stage = 0.100 H.P. Maximum Head Per Stage - 15' (4.5 Meter)

H.P. STAGE NRV 32 mm (1.25") DISCHARGE IN L.P.M
20 40 50 55 65 75 90
0.5 6 Head in Meters 24 21 20 18 15 12 6
0.75 10 40 35 33 30 25 20 10
1 13 52 46 43 39 33 26 13
1.5 16 64 56 53 48 40 32 16

Loading per stage = 0.055 H.P. Maximum Head Per Stage - 13' (4 Meter)

H.P. STAGE NRV 32 mm (1.25") DISCHARGE IN L.P.M
10 20 30 40 50 55 60
0.5 9 Head in Meters 34 30 27 23 16 12 9
0.75 14 53 47 42 36 25 19 14
1 16 61 54 48 41 28 22 16
1 18 68 60 54 46 32 25 18
1 20 76 67 60 52 36 28 20
1.5 23 87 77 67 59 41 32 23

Loading per stage = 0.150 H.P. Maximum Head Per Stage - 13' (4.0 Meter)

H.P. STAGE NRV 32 mm (1.25") DISCHARGE IN L.P.M
15 25 40 50 60 65 75
0.5 6 Head in Meters 23 21 18 15 12 9 6
0.75 10 38 35 30 25 20 15 10
1 12 45 42 36 30 24 18 12
1 13 49 46 39 33 26 20 13
1.5 16 60 56 48 40 32 24 16

Loading per stage = 0.100 H.P. Maximum Head Per Stage - 13' (4.0 Meter)

H.P. STAGE NRV 32 mm (1.25") DISCHARGE IN L.P.M
15 25 45 55 70 85 95
0.5 5 Head in Meters 19 17 15 13 10 8 5
0.75 7 26 24 21 18 14 11 7
1 10 37 34 30 26 20 16 10
1.5 12 45 41 36 31 24 19 12
1.5 14 52 48 42 36 28 22 14
