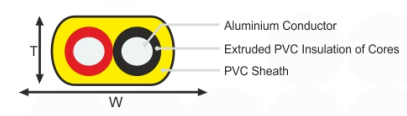

CONDUCTOR:
- Conductor : Solid high-grade aluminium
- Insulation : PVC
- Sheath : Special grade tough PVC
SPECIAL FEATURES:
- Ultra tough, resistant to abrasion and harsh weather
- Excellent mechanical & electrical properties
| SPECIFICATION OF TWIN FLAT ALUMINIUM CABLES PVC INSULATED AND SHEATHED TWIN FLAT ALUMINIUM CABLE UP T0 1100 V. CONFORMING TO IS 694 : 1990 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Conductor | PVC Insulation | PVC Sheath | Conductor Resistance at 20°C (max) | Current rating at 40°C | ||||
| Nominal Area Of Conductor In Sq. mm | Counductor Construction No. / mm. | Nominal Insulation Thickness In mm. | Approx Core Dia. In mm. | Nominal Thickness In mm. | Max. Overall Dimension | |||
| Height mm | Width mm | |||||||
| 2.50 | 1/1.78 | 0.7 | 3.3 | 1.0 | 6.40 | 10.00 | 18 | 12.1 |
| 4.00 | 1/2.25 | 0.8 | 3.8 | 1.0 | 7.20 | 11.50 | 23 | 7.41 |
| 6.00 | 1/2.76 | 0.8 | 4.5 | 1.1 | 8.00 | 13.00 | 30 | 4.61 |
| 10.00 | 1/3.57 | 1.0 | 5.5 | 1.2 | 9.60 | 16.00 | 40 | 3.08 |
