Solid flexible high grade aluminum
-
High Grad PVC insulation to protect most resistance to cable's SHEATHING & CONDUCTORS. It is also helpful give flexibility & hardness to Cable.
-

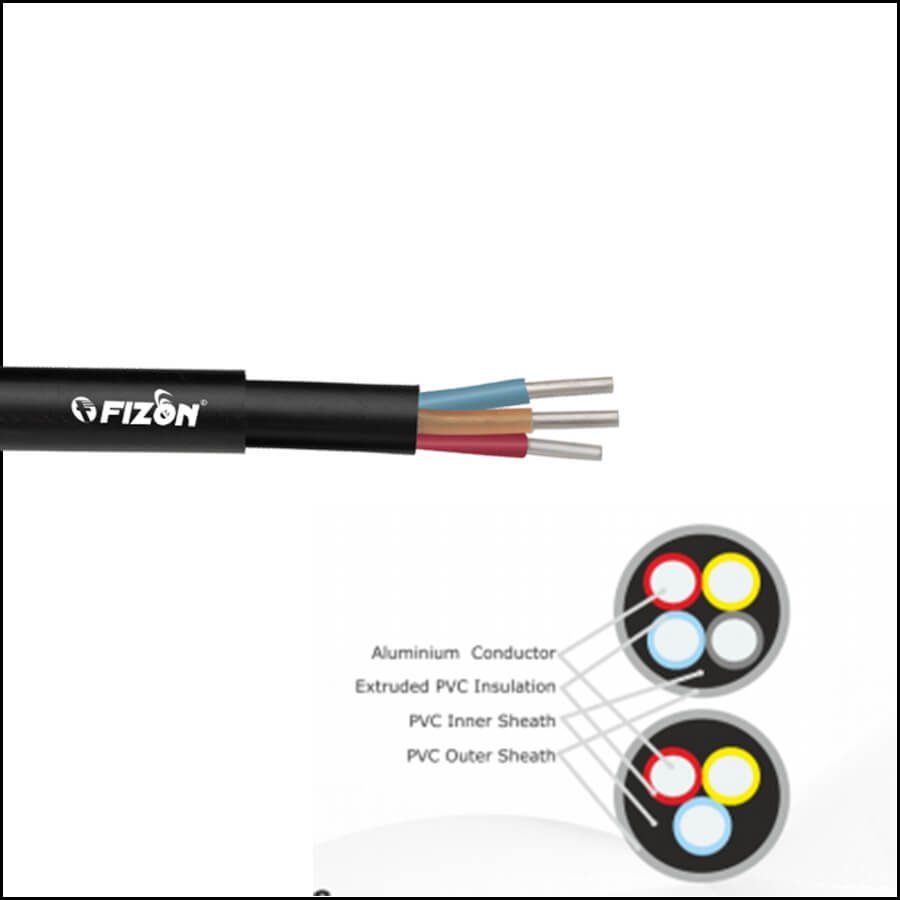

PVC insulated and sheathed round aluminium unarmoured cables are laid on ground for connection purposes. The sheath is designed to resist tough and difficult condition of usage, excellent resistance to water, conditionally resistant to oil and grease.
-
Ultra tough, resistant to abrasion and harsh weather
-
Excellent mechanical & electrical properties
| SPECIFICATION OF ALUMINIUM UNARMOURED CABLES |
| Conductor |
PVC Insulation |
Approx. Overall Dimensions of Cable |
Conductor Resistance at 20°C (max) |
Current rating at 40°C |
| Nominal Area in |
Nos. & Dia. of wire |
Nominal Thickness |
Nominal Core Dia. |
3 Core |
4 Core |
| (T x W) Thickness x Width |
(T x W) Thickness x Width (T x W) Thickness x Width |
| Sq. mm. |
Nos./mm |
mm. |
mm. |
mm. |
mm. |
Ω/km |
Amps. |
| 4 |
1/2.25 |
0.8 |
3.8 |
11.4 |
13 |
7.41 |
23 |
| 6 |
1/2.76 |
0.8 |
4.5 |
12.8 |
14 |
4.61 |
30 |
| 10 |
1/3.57 |
1 |
5.5 |
14.4 |
17 |
3.08 |
40 |
| 16 |
1/4.50 |
1.1 |
6.7 |
17.6 |
21 |
1.91 |
51 |
| 25 |
1/5.65 |
1.2 |
8.1 |
20.5 |
23 |
1.20 |
70 |
| 35 |
1/6.68 |
1.2 |
9.4 |
23.75 |
27.30 |
0.86 |
86 |
