Conductor : EC grade flexible copper
-
Insulation : PVC
-
Sheath : PVC
-
Generally conforms to IS 694, BS 6004, IEC 60227, DIN VDE 0281 -3, IS 8130 & IS 5831
-
Power wiring to appliance Sockets, Machineries, Industrial lighting. Penal boards. Batteries, D.C. Power Transfer etc.
-
Higher current carrying capacity
-
Highly thermally stable insulation
-
Longer Flex Life
-
Excellent mechanical & electrical properties
-
Operating Temp -15°C to +70°C / +90°C

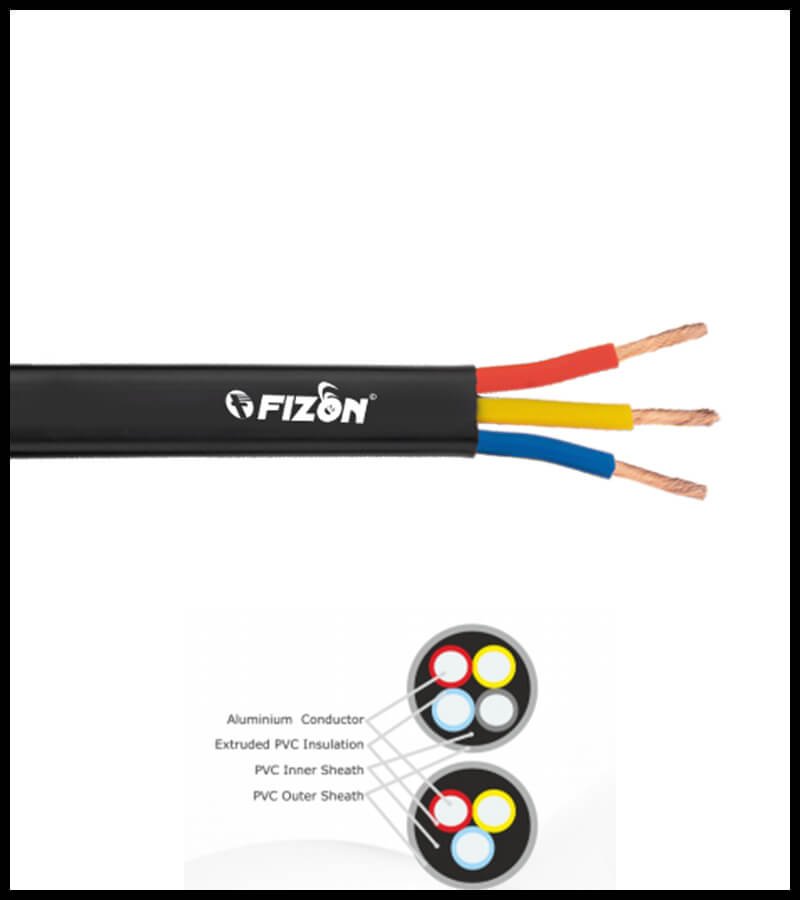

| PVC INSULATED & SHEATHED ANNEALED COPPER CONDUCTOR MULTI CORE CABLES |
| Size in sq. mm. |
Size in mm. |
Current Rating |
Approximate overall diameter of cable in mm |
| 2 core |
3 core |
4 core |
| 0.50 |
16 / 0.20 |
4 |
6.20 |
6.60 |
7.20 |
| 0.75 |
24 / 0.20 |
7 |
6.80 |
7.20 |
7.90 |
| 1.00 |
32 / 0.20 |
11 |
7.00 |
7.50 |
8.10 |
| 1.50 |
48 / 0.20 |
14 |
7.60 |
8.10 |
9.00 |
| 2.50 |
80 / 0.20 |
19 |
9.00 |
9.60 |
10.50 |
| 4.00 |
56 / 0.30 |
26 |
10.60 |
11.30 |
12.40 |
| 6.00 |
84 / 0.30 |
33 |
12.60 |
13.40 |
15.20 |
| 10.00 |
140 / 0.30 |
45 |
16.00 |
17.00 |
18.80 |
| 16.00 |
226 / 0.30 |
60 |
18.80 |
20.10 |
22.20 |
| 25.00 |
354 / 0.30 |
75 |
24.00 |
25.60 |
28.20 |
| 35.00 |
276 / 0.40 |
102 |
– |
27.5 |
30.5 |
| 50.00 |
396 / 0.40 |
138 |
– |
31.7 |
35.6 |
